Industry’s
best-in-class
direct lithium
extraction
technology
A GAME CHANGING
PATENTED INNOVATION
Viable with virtually all brine resources
Fresh water usage savings (up to 9x less fresh water usage than conventional salar and up to 3x less fresh water usage than hard rock methods)1
Physical footprint savings (10x smaller compared to hard rock methods and 1000x smaller compared to conventional salar)1
No chemical reagents. Only water is required to strip lithium (no acid or caustic)
Commercially ready
Proven equipment and design with commercial scale adsorbent production make ILiAD ready for implementation
Demonstrated absorbent lifespan
up to 6-years
Efficient. Flexible. Sustainable.
NOTE 1: Based on data from "Lithium Hydroxide Monohydrate Life Cycle Assessment Study" by Minviro LTD
Exceptionally pure
lithium chloride product
High quality LiCl product with 99.9% or greater impurity rejection
Versatility.
Quality.
Adaptability.
Viable on heavily
mineralized brines
Total dissolved solids from 10% to greater than 40%. Impurity levels of Na, K, Ca, Mg, B and others from 1,000 ppm to 100,000 ppm
Viable for brines with
a diverse range of lithium
concentrations
Feed lithium concentrations as low as 50 ppm to greater than 2000 ppm
Designed for easy installation and immediate operation.
> REDUCED SYSTEM COMPLEXITY minimizes maintenance time and cost while increasing system availability.
> DELIVERED AS A FULLY ASSEMBLED modularized system, providing easy installation and reducing total installed costs.
> COMBINING CONVENTIONAL INDUSTRY best practices with new technological advances results in a “first to market” DLE technology with proven performance.
> SCALABLE, REPEATABLE and designed to deliver on a wide range of production capacities with a “plug and play” approach.
Works With Nearly Every Brine
Replacing conventional evaporation ponds with ILiAD reduces physical footprints by 1000x, lessens environmental impacts and eliminates lithium salt losses (40-50%) generated during the evaporative process.
Salar
Brines
Produced
Water Brines
After de-oiling, ILiAD can process lithium laden produced waters before re-injection, effectively turning a waste stream into a salable by-product. 90% recovery can be achieved with as low as 50 ppm lithium feed concentration.
With effective pre-treatment, processing geothermal brines with ILiAD boasts high loading capacities and recoveries while taking advantage of excess brine temperatures. Feed impurities as high as 100,000 ppm can be effectively reduced to hundreds of ppm in the final product.
Geothermal
Brines
Ground
Water Sources
ILiAD achieves 90% or greater recovery rate of lithium from ground water sources with as little as 10% total dissolved solids.
Finished
Product To Market
Depleted
Brine
ILiAD
Filtration
Softening/Concentration/Conversion
Crystallization
LiCI
Product

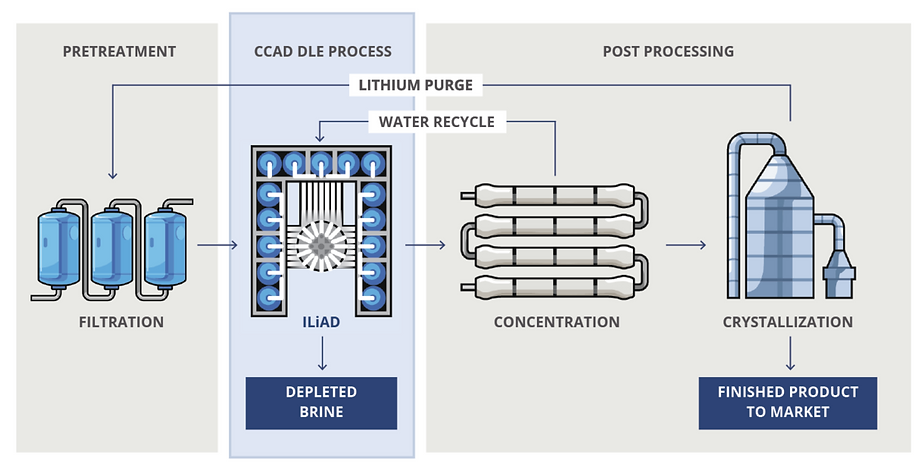

The ILiAD
Process Flow
Easily Intergrated Into Existing Process Operations
